Ответ: Замена магнитолы на Grand Vitara New (+)
это полная версия того что там есть? оригинально
нет, это не тоНе-не-не. Искать не сталЧешу репу., вот то что спрашиваете:
Detailed Product Description

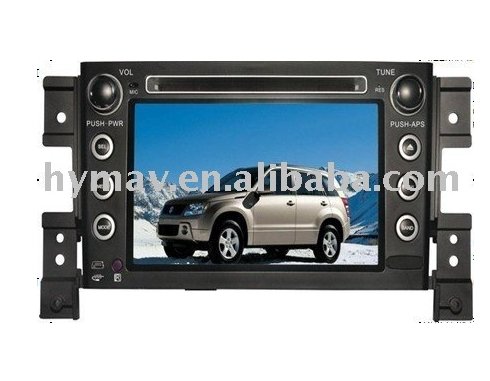

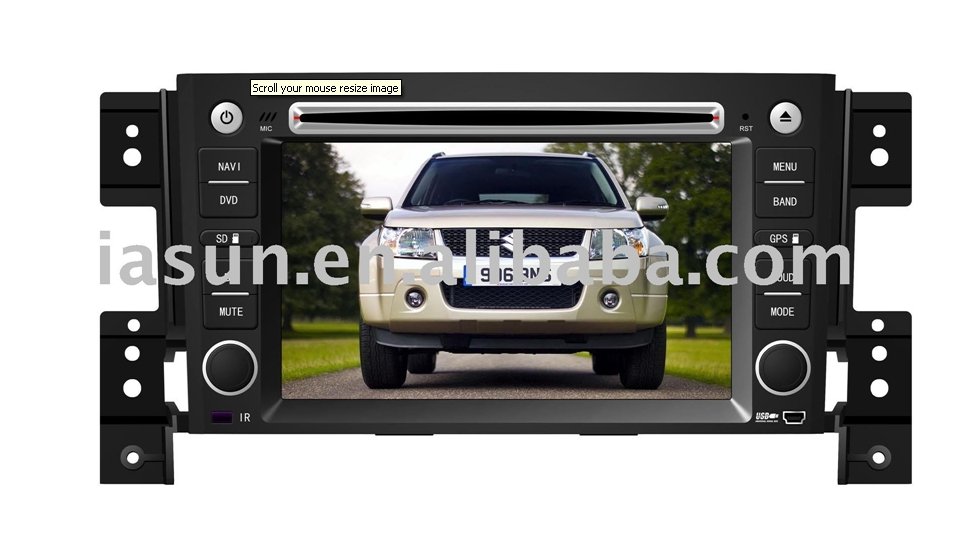

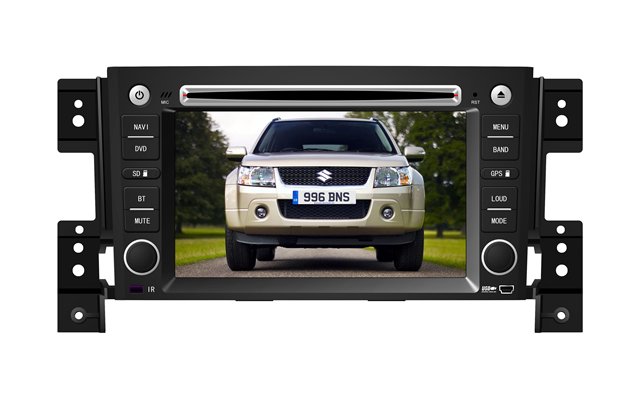

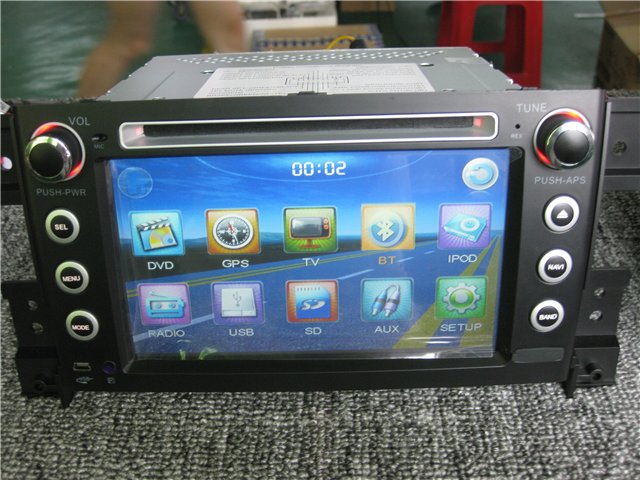

7" Digital TFT Touch Screen Special Car
DVD Entertainment Multi-Center for
2006-2010 Suzuki Grand Vitara/Escudo with GPS System
Build-in Steering Wheel Control (no adapters or slicing cables)
Multi-region DVD player (plays any regions around the globe), including DVD/MP4/VCD/MP3/CD/DivX/CD-R-RW/VMA/JPEG etc
Mini USB/SD sockets for music/video files
IPod Control
AM/FM PLL (Digital) Tuning Radio, RDS receiver optional
Build-in Bluetooth for Hands Free Calls
Build-in GPS System operated by touch screen
(North American, West-East European, Russian Federation maps are available)
Built-in analog TV (PAL/SECAM/NTSC), DVB-T Tuner optional
Dualzone function – Listen Radio/CD while in GPS mode
30 Preset Memory Stations
Rear Camera/Night Vision System Input
Full Function Remote Control
4x45 Watts Amplifier
GPS Features:
Map supported: Route 66, TOMTOM, IGO-8, DESTINATOR, POLNAV, etc.
Operation system: Windows CE 5.0/6.0
Processor: SAMSUNG High performance processor S3C2440A-40,
Max.main frequency 400MHZ.
Display output : CVBS+S-VIDEO output. (Resolution:800*480) or simulation RGB output .
GPS specification: Adopt SiRF STAR III 20 channel and excessive high sensitivity GPS receiving module REB-3310,
Orientation sensitivity reaches -159dBm,
Orientation presicion<10M,
Orientation time of cold boot is 42S,
Orientation time of warm boot is 35S,
Orientation time of hot boot is 1S.
Accessories: 1) One Power Cable
2) One A/V Cable
3) One RCA Cable
4) One Full Function Remote Control
5) One Stylus Pen
6) One GPS Receiver Cable
7) Operational Manual
FM TUNER
Signal/ Noise Ratio 60db
Frequency Range 87.5-108.0MHz
Stereo Separation @1Khz 40db
Intermediate Frequency 10.7MHz
AM TUNER
Frequency Range 522-1620KHz
Intermediate Frequency 450KHz
Usable Sensitivity 33 db
CD PLAYER
Signal/ Noise Radio 80db
Frequency Response 20Hz-20KHz
Channel Separation 70db
TV TUNER (only)
Frequency Range 48.25-863.25MHz
Intermediate Frequency 45.75MHz
Signal/Noise Audio 45db
Signal/Noise Vedio 46 db
AMPLIFIER
Supply Power 13.8V
Power Output 45Wx4CH
Load Impendnce 4-8Ohms
Size of Unit: 224x216x124mm
